M-Cube

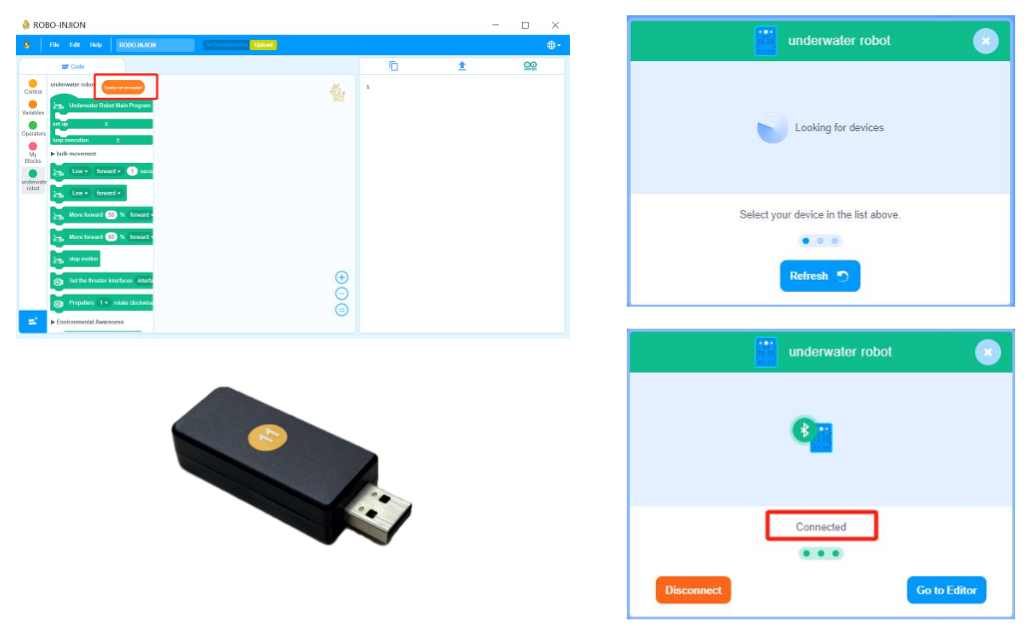

It can be done by graphical programming to achieve various robot functions. It supports automatic code generation, graphical interface selection, one-click program upload, and automatic device recognition. The platform includes modules for "overall movement," "screen display," "environmental sensing," "motion execution," and "remote communication“ etc.
Multi-mimetic modular design
Standard aperture, LEGO compatible, allows students to quickly and conveniently build 10+ marine creatures.
Bionic Course

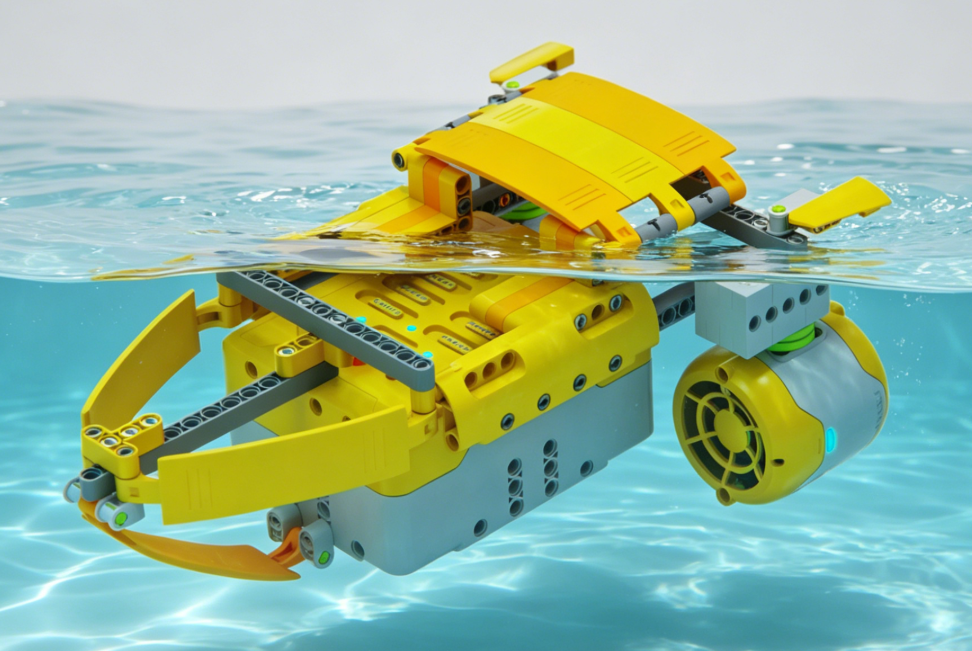

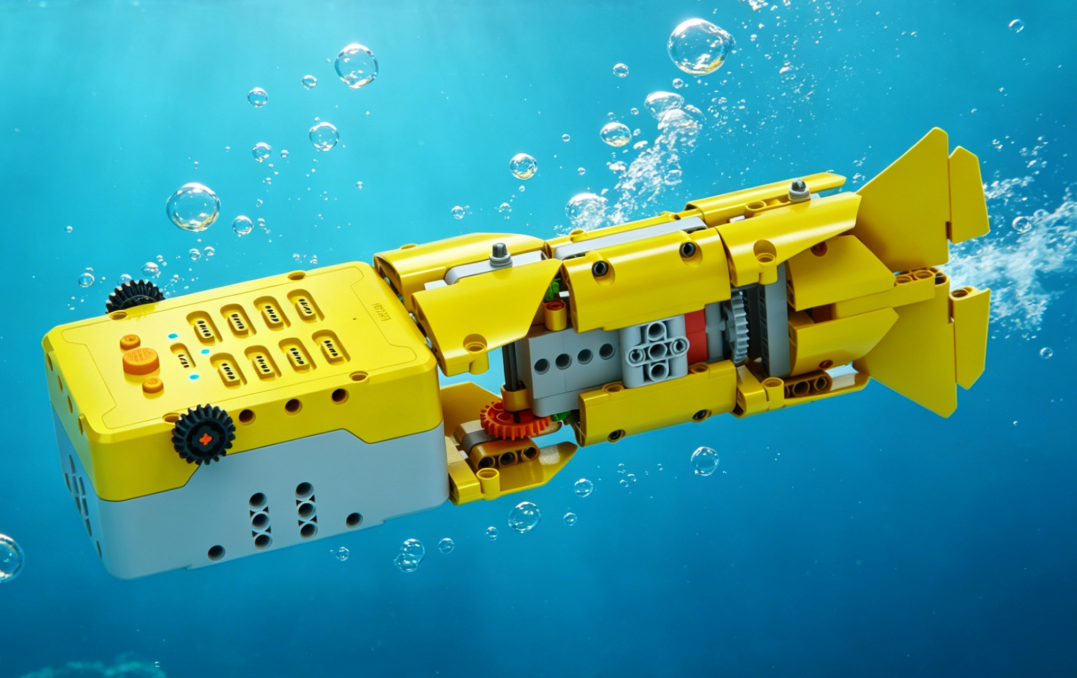

With the course accessory pack, the M-Cube can be designed into various biomimetic forms such as turtles, frogs, crabs, speedboats, and fish, with a mechanical structure that replicates the real movements of living organisms in a 1:1 scale. Graphical or Python programming can precisely control the rhythm and posture of the movement, allowing the robot to "live" in the water.
IP68 Independent waterproof module
All modules such as main control, thruster, expansion cabin, motor, infrared obstacle avoidance, and servo are independently packaged and certified with IP68, ensuring safe operation in deep water.
Dual control mode(Bluetooth & wireless )
The world’s only wireless underwater robot suitable for K12 education.
Device Name | Parameter | ||||
Underwater Robot Learning Kit M-CUBE
| Control Cabin | Plastic Casing, standard aperture, LEGO compatible | |||
Independent waterproof module, IP68 waterproof certification, support Bluetooth & wireless dual control mode | |||||
Battery Capacity | 2600 mAh | Waterproof Magnetic Interface | 9 PCS | ||
Positive/ Negative Propeller Thruster | Plastic Casing, standard aperture, LEGO compatible | ||||
Independent waterproof module, IP68 waterproof certification, with waterproof magnetic interface | |||||
Bulit-in brushless waterproof motor whose outer rotor contains at least 16 rare earth magnets | |||||
Remote Control | Equipped with a signal amplification antenna and a power display indicator | ||||
Battery Capacity | 1600mAh | ||||
Joystick | 2 | Functional Buttons | 12 | ||
Wireless Downloader | Plastic casing can protect the internal circuitry of the wireless download module | ||||
Wirelessly connects to the control cabin and allows for programming the control cabin | |||||
M-Cube Key Components | Motor | Waterproof, plastic casing, LEGO compatible, with waterproof magnetic interface | |||
Infrared obstacle avoidance module | Waterproof, plastic casing, LEGO compatible, with waterproof magnetic interface | ||||
Servo | Waterproof, plastic casing, LEGO compatible, with waterproof magnetic interface | ||||
Course Accessory Pack | Type | No less than 60 | Quantity | No less than 310 | |
Includes at least 16 irregularly shaped tech panels, capable of building at least 6 course cases | |||||
