High-Voltage Safty Training Lab
Understand the high-voltage safety measures necessary for the operation；
Master the insulation detection of high-voltage components and the plug-in & plug-out of high-voltage connectors;
Grasp the testing of key components of NEV and basic first aid skills such as cardiopulmonary resuscitation (CPR)；

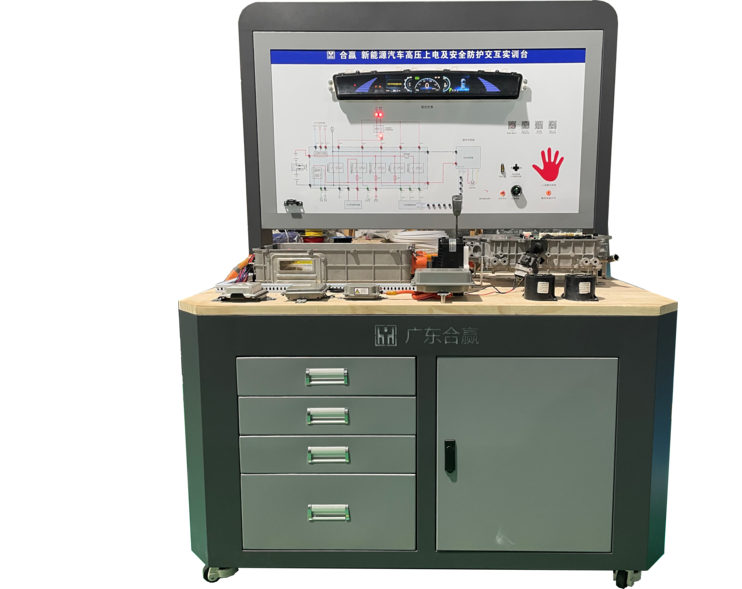

High-Voltage Safty Training Platform
•Original Vehicle Components, including power distribution box assembly, motor controller, instrument cluster, gear shift lever, OBD, etc.；
•Vehicle Function Simulation, simulates the power-up & power-down process, P-R-N-D gear operation, and general & severe leakage states;；
•Safe electric shock experiments, troublrshooting in different control circuits;
•Access and analyze high-voltage system data streams for errors by decoder.
No. | Training Project | No. | Training Project |
1 | High-Voltage Disconnection Methods | 5 | Detection Current and Changes of Output Signal |
2 | Principles of High-Voltage Components | 6 | Disassembly & Assembly of Components |
3 | Verification of High-Voltage Component | 7 | Troubleshooting of High-Voltage Distribution |
4 | Testing High-Voltage Terminals of Relays | 8 | / |
Training Project

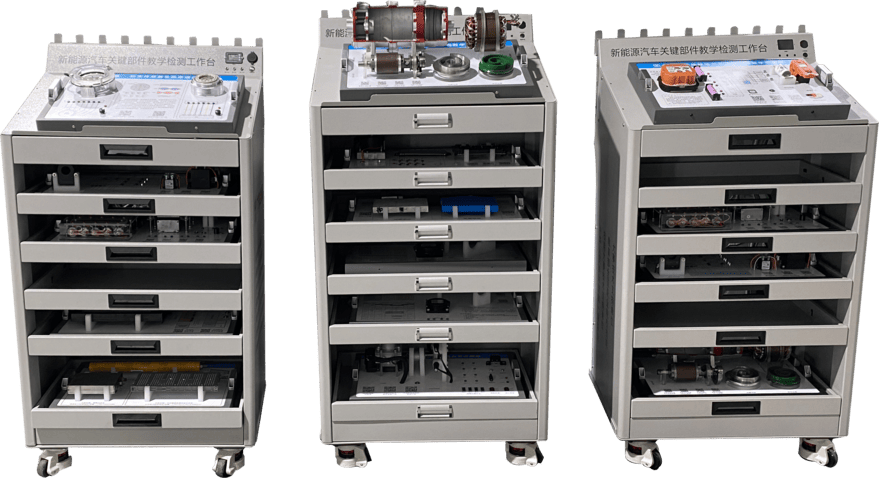

Key Components Testing Training Platform
•Original Vehicle Components， including Ni-MH battery, Li-Fe-Po battery, air conditioning, ABC control System, DC charging gun, fuse, etc.；
•Equipped with a multifunctional power supply Module, providing power supply and operating platform.
•Strong Interactivity，compact in size, easy to move.
Training Project

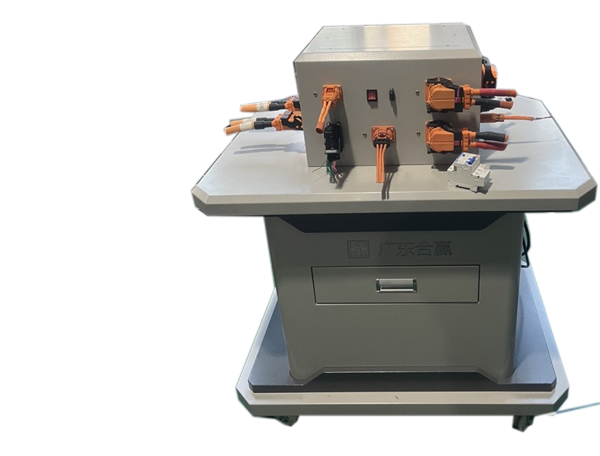

High-Voltage Connector Training Platform
•Original Vehicle High-Voltage Connectors, from leading manufacturers, exactly matching power battery packs；
•Equipped with a variety of high-voltage plugs, meeting different vehicle models;
•Repeated plug-in and plug-out training, help students master the operation of high-voltage connector plug and unplug.
No. | Training Project | No. | Training Project |
1 | Battery Pack Positive and Negative Connector Plug & Unplug | 6 | Compressor Connector Plug & Unplug |
2 | DC Charging Positive and Negative Pole Connector Plug & Unplug | 7 | PTC Connector Plug & Unplug |
3 | Low-Voltage Connector Plug & Unplug | 8 | DC-DC & Air Conditioning Connector Plug & Unplug |
4 | Inlet and Outlet Water Pipe Plug & Unplug | 9 | Onboard Charging High-Voltage ConnectorPlug & Unplug |
5 | Maintenance Switch Plug & Unplug | 10 | Onboard Charging Low-Voltage Connector Plug & Unplug |
Training Project

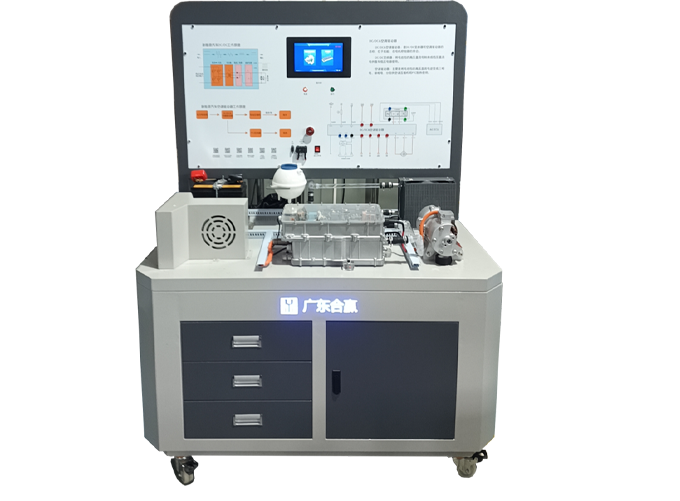

DC/DC Interactive Training Platform
•Original Vehicle Components, including BYD DC/DC and air conditioning controllers, equipped with ignition switches, load switches, fuses, etc.；
•Employs PWM control to facilitate the transformation of DC power into AC power;
•Detection of input and output DC voltages.
No. | Training Project |
1 | Understanding Capacitor and Inductor Modules |
2 | Understanding IGBT and Power Modules |
3 | Working Principle of Transformers |
4 | Recognition of Rectification Principles |
5 | Priciple of DC-DC Converter and Signal Measurement |
