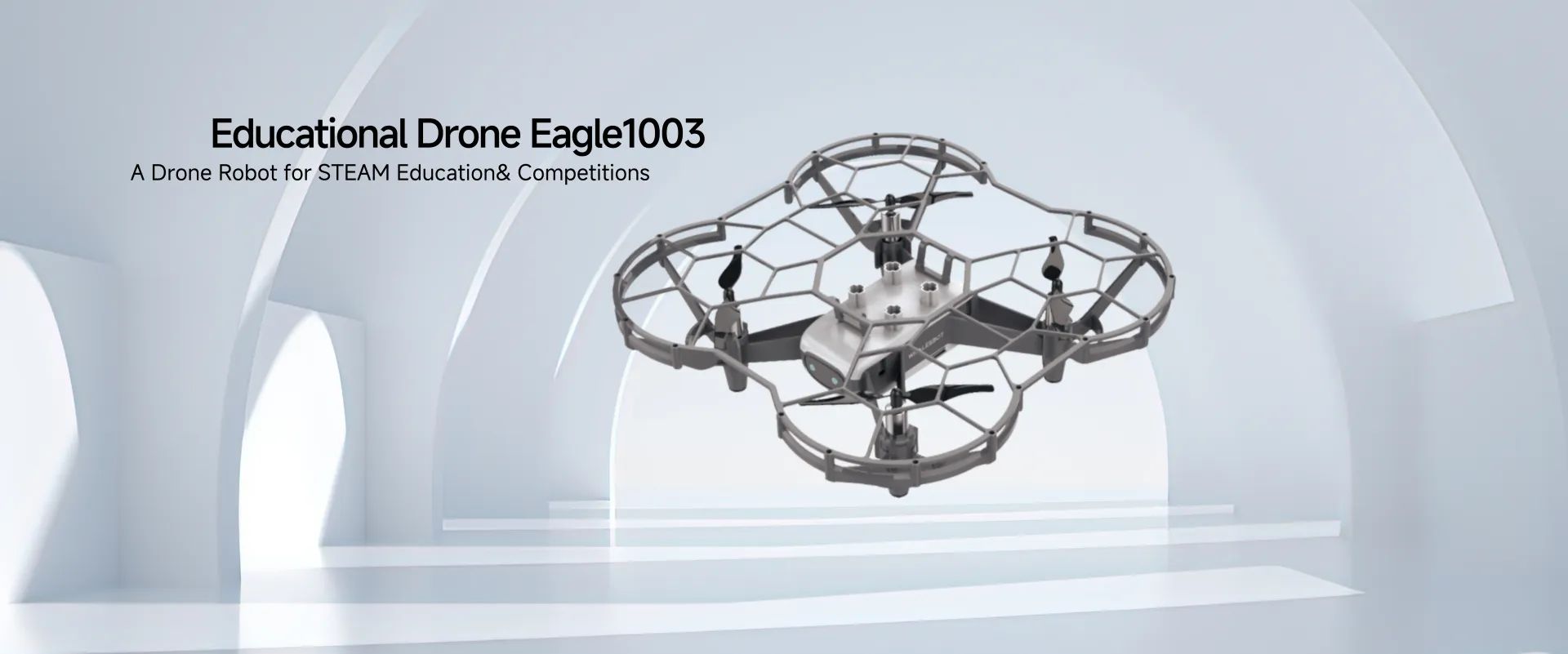

Eagle1003

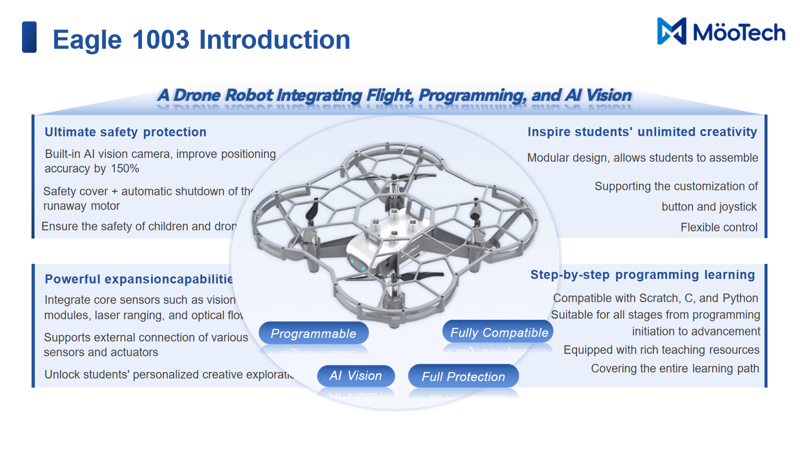

The EG1003 educational drone integrates flight, programming, and AI vision.

It incorporates multiple advanced sensors and actuators, supports graphical and Python programming, and helps teenagers learn STEM knowledge through hands-on experience, fostering innovative thinking and practical skills.



魔法原子MagicBot Z1_19.jpg

Ultimate Safety Protection

Equipped with propeller safety cover, it features an automatic motor shutdown function in case of loss of control, immediately locking the propellers in case of flight abnormalities to maximize the safety of personnel and equipment. The built-in AI visual recognition camera enables precise hovering and flight, improving positioning accuracy by 150%, resulting in more stable and reliable flight, suitable for various scenarios such as classroom teaching and after-school practice.

魔法原子MagicBot Z1_19.jpg

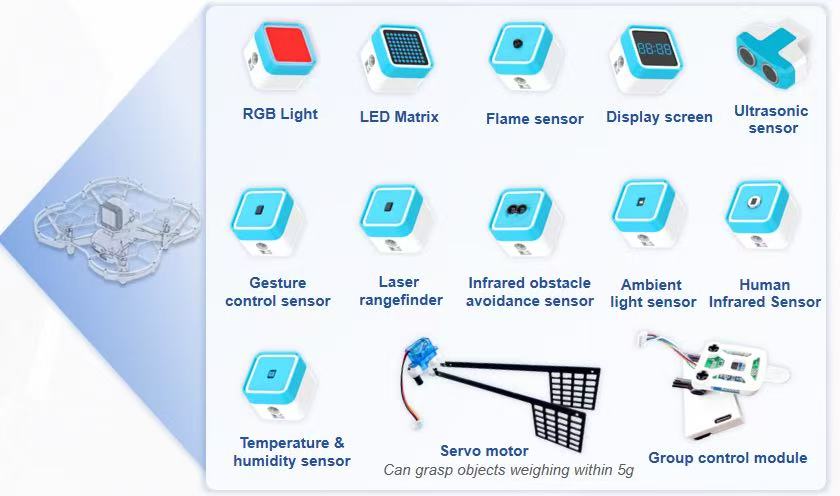

Strong Hardware Expansion and Perception Capabilities

With open interfaces, it supports the external connection of various sensors and actuators to meet the needs of students for building personalized creative projects. It integrates 8 core sensors such as QR code vision module, laser ranging, 6-axis gyroscope and optical flow, fully perceiving the surrounding environment and laying a hardware foundation for environment interaction and data acquisition projects.

魔法原子MagicBot Z1_19.jpg

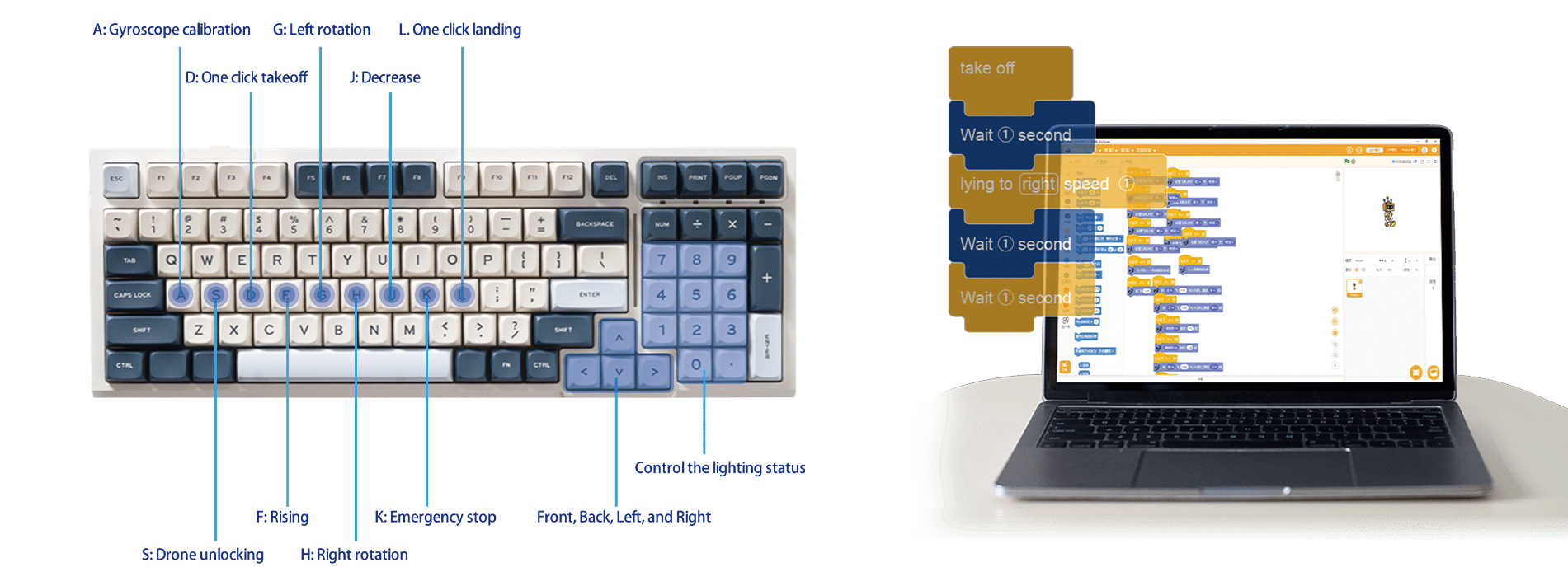

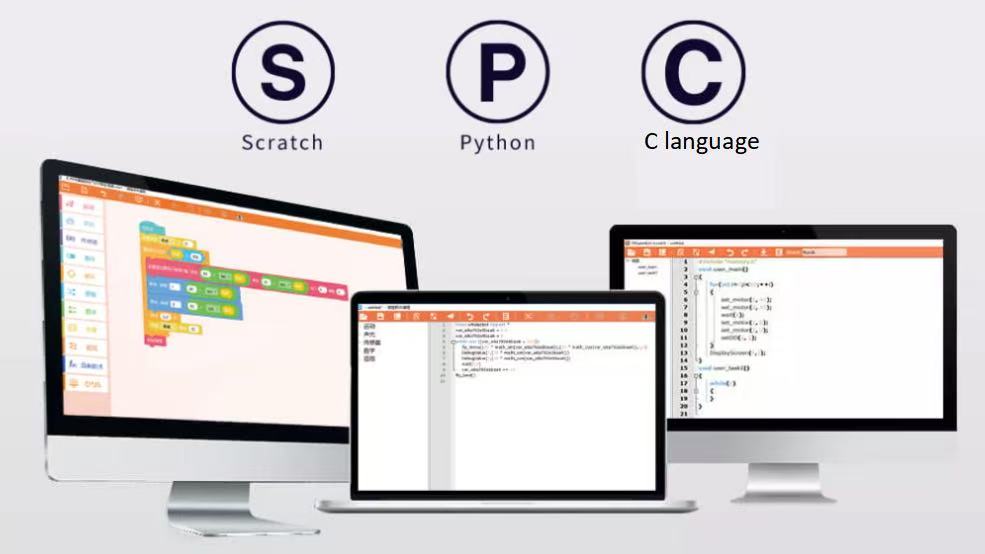

Progressive Programming Learning System

It supports graphical programming and C/Python code programming, easy to entry and high fun. Students can start with visual drag-and-drop programming and seamlessly transition to industrial-grade programming languages, meeting the needs of advanced learning and competitions, and fully covering the entire learning path from programming enlightenment to advanced applications.

魔法原子MagicBot Z1_19.jpg

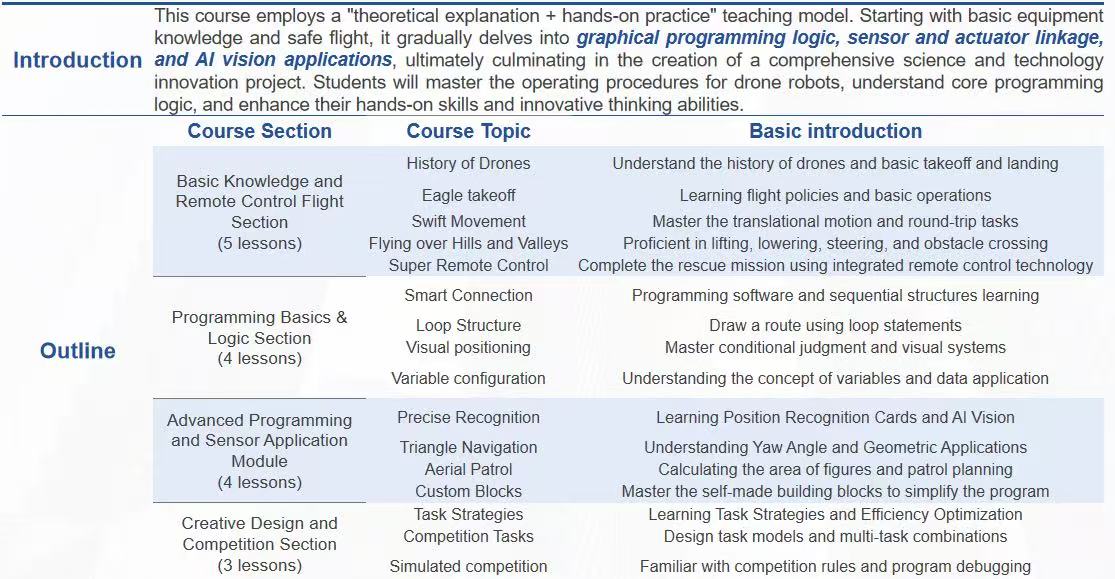

Professional and Complete Teaching Ecosystem

It provides abundant curriculum resources, including courses, lesson plans, and project cases, providing one-stop support for classroom teaching, after-class practice, and science and technology innovation competitions; it is equipped with a customizable remote control that supports customized button and joystick functions, allowing for both simple operation and practice of professional flight maneuvers.p

Device Name

Parameter

Programmable Drone Eagle1003

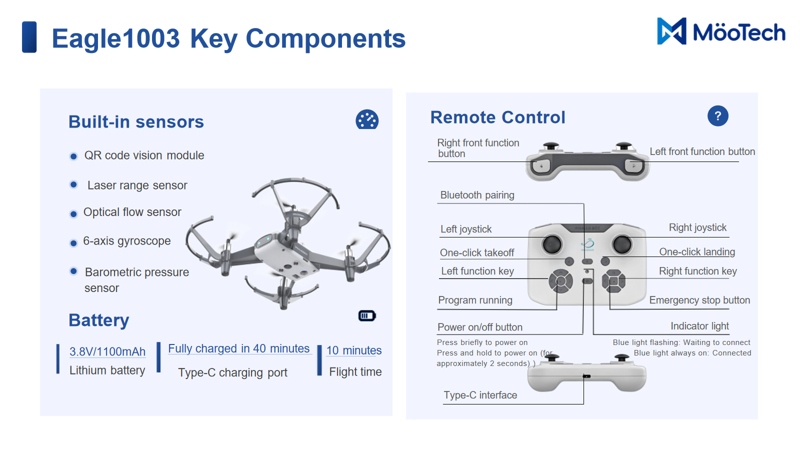

Main Control

Built-in with Bluetooth, optical flow sensor, laser ranging sensor, 6-axis gyroscope, barometric pressure sensor, QR code vision module

Main Chip

ARM M4 core, 600MHz main frequency, 3MB FLASH, 1MB SRAM

Interface

2-way I/O ports, reusable as serial port, I2C port, DO port, analogport, PWM servo port

Graphics

ARM Mali-400MP2 GPU

Operating System

Linux

Audio

VIA VT1603 Stereo Audio Codec

Expansion Board

4-pin connector *2, I2C connector *2, UART connector *1, power output connector *4, Arduino compatible connector header

Remote Control

720p30,FOV90°, identifying road conditions and traffic signs

Specifications

Size

185*185*55 mm

(including Propeller Guard)



Wheelbase

127mm±1mm

Takeoff Weight

92g

(including Propeller Guard)

Flight Time

8 minutes

Moter

4 PCS

Propeller

75mm

double-blade propeller*4

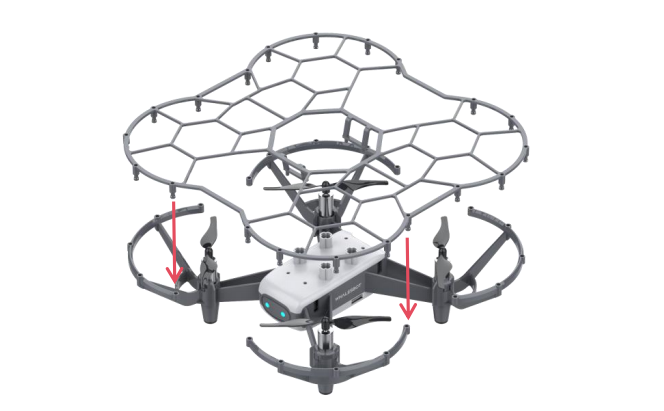

Protective Cover

Including 2 types: fully enclosed and semi-enclosed

Gear Motor

Quantity

4

Rated Voltage

12V

Gear Ratio

1:30

Rated Speed

170rpm/Min

Rated Torque

0.6kg·cm

Rated Current

0.19A
